Estimated reading time: 39 minutes

The k-means clustering algorithm works by finding like groups based on Euclidean distance, a measure of distance or similarity. The practitioner selects k groups to cluster, and the algorithm finds the best centroids for the k groups. The practitioner can then use those groups to determine which factors group members relate. For customers, these would be their buying preferences. Clustering is nothing but automated groupbys. With some effort you can create better clusters manually, but you can also just let the data guide you.

import pandas as pd
customers = pd.read_excel("data/bikeshops.xlsx", sheet=1)
products = pd.read_excel("data/bikes.xlsx", sheet=1)
orders = pd.read_excel("data/orders.xlsx", sheet=1)
df = pd.merge(orders, customers, left_on="customer.id", right_on="bikeshop.id")

df = pd.merge(df, products, left_on="product.id", right_on="bike.id")

Now the data frame that simulates output we would get from an SQL query of a sales orders database / ERP system

Around here is where you should formulat a question. I would want to investigate the type of customers interested in Cannondale. I apriori believe that Cannondale customers put function of form, they like durable products and that they are after a strong roadbike at a reasonable price. Now we have to think of a unit to cluster on. I think quantity is foundatation and easily interpretable, so I will cluster on that. Something like value is both the function of quantity and price so you would.’t want to cluster on that. Maybe avervage price as it ignores or dampen the effect of quantity.

The bike shop is the customer. A hypothesis was formed that bike shops purchase bikes based on bike features such as unit price (high end vs affordable), primary category (Mountain vs Road), frame (aluminum vs carbon), etc. The sales orders were combined with the customer and product information and grouped to form a matrix of sales by model and customer.

df = df.T.drop_duplicates().T
df["price.extended"] = df["price"] * df["quantity"]
df = df[["order.date", "order.id", "order.line", "bikeshop.name", "model",
         "quantity", "price", "price.extended", "category1", "category2", "frame"]]
df = df.sort_values(["order.id","order.line"])
df = df.fillna(value=0)
df = df.reset_index(drop=True)
## You can easily melt which seems to be anothre
 #melt()
## I think melt reverses the pivot_table.
## summarise in R is arg, spread is pivot_table/melt
df["price"] = pd.qcut(df["price"],2)
merger = df.copy()
df = df.groupby(["bikeshop.name", "model", "category1", "category2", "frame", "price"]).agg({"quantity":"sum"}).reset_index().pivot_table(index="model", columns="bikeshop.name",values="quantity").reset_index().reset_index(drop=True)
df.head()
bikeshop.name model Albuquerque Cycles Ann Arbor Speed Austin Cruisers Cincinnati Speed Columbus Race Equipment Dallas Cycles Denver Bike Shop Detroit Cycles Indianapolis Velocipedes ... Philadelphia Bike Shop Phoenix Bi-peds Pittsburgh Mountain Machines Portland Bi-peds Providence Bi-peds San Antonio Bike Shop San Francisco Cruisers Seattle Race Equipment Tampa 29ers Wichita Speed
0 Bad Habit 1 5.0 4.0 2.0 2.0 4.0 3.0 27.0 5.0 2.0 ... 6.0 16.0 6.0 7.0 5.0 4.0 1.0 2.0 4.0 3.0
1 Bad Habit 2 2.0 6.0 1.0 NaN NaN 4.0 32.0 8.0 1.0 ... 1.0 27.0 1.0 7.0 13.0 NaN 1.0 1.0 NaN NaN
2 Beast of the East 1 3.0 9.0 2.0 NaN NaN 1.0 42.0 6.0 3.0 ... NaN 18.0 2.0 7.0 5.0 1.0 NaN 2.0 2.0 NaN
3 Beast of the East 2 3.0 6.0 2.0 NaN 2.0 1.0 35.0 3.0 3.0 ... NaN 33.0 4.0 10.0 8.0 2.0 1.0 3.0 6.0 1.0
4 Beast of the East 3 1.0 2.0 NaN NaN 1.0 1.0 39.0 6.0 NaN ... 5.0 23.0 1.0 13.0 4.0 6.0 NaN 1.0 2.0 NaN

5 rows × 31 columns

rad = pd.merge(df, merger.drop_duplicates("model"), on="model", how="left")

rad.price.extended = rad.price

rad = rad.drop(["order.date","order.id","order.line","bikeshop.name","quantity","price.extended"],axis=1)

non_cat = list(rad.select_dtypes(exclude=["category","object"]).columns)

cat = list(rad.select_dtypes(include=["category","object"]).columns)

rad[non_cat] = rad[non_cat].fillna(value=0)

rad[rad.columns.difference(cat)] = rad[rad.columns.difference(cat)]/rad[rad.columns.difference(cat)].sum()

Now we are ready to perform k-means clustering to segment our customer-base. Think of clusters as groups in the customer-base. Prior to starting we will need to choose the number of customer groups, k, that are to be detected. The best way to do this is to think about the customer-base and our hypothesis. We believe that there are most likely to be at least four customer groups because of mountain bike vs road bike and premium vs affordable preferences. We also believe there could be more as some customers may not care about price but may still prefer a specific bike category. However, we’ll limit the clusters to eight as more is likely to overfit the segments. KMeans is really for something that has attributes

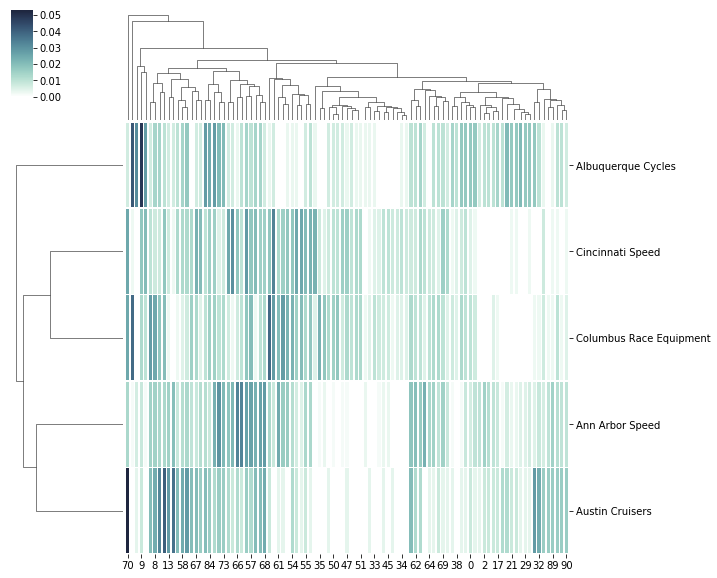

Dendogram shows the distance between any two observations in a dataset. The vertical axis determines the distance. The longer the axis, the larger the distance.

%matplotlib inline
import matplotlib.cm as cm
import seaborn as sn
from sklearn.cluster import KMeans
cmap = sn.cubehelix_palette(as_cmap=True, rot=-.3, light=1)
sn.clustermap(rad.iloc[:,1:-4:].T.head(), cmap=cmap, linewidths=.5)

<seaborn.matrix.ClusterGrid at 0x10ab5c208>

png

cluster_range = range(1, 8)
cluster_errors = []

for num_clusters in cluster_range:
    clusters = KMeans( num_clusters )
    clusters.fit(rad.iloc[:,1:-4:].T)
    cluster_errors.append( clusters.inertia_ )
clusters_df = pd.DataFrame( { "num_clusters":cluster_range, "cluster_errors": cluster_errors } )
clusters_df
cluster_errors num_clusters
0 0.184222 1
1 0.142030 2
2 0.121164 3
3 0.103948 4
4 0.097594 5
5 0.089718 6
6 0.083149 7
import matplotlib.pyplot as plt

plt.figure(figsize=(12,6))
plt.plot( clusters_df.num_clusters, clusters_df.cluster_errors, marker = "o" )

[<matplotlib.lines.Line2D at 0x1a12105c50>]

png

Clearly after 4 nothing much happens. You will overfit if you move further away than the elbow.

I juat compared the last two feature against eachother

You have to label encode them for below to work

from sklearn import preprocessing le = preprocessing.LabelEncoder()

for col in rad: if rad[col].dtype == ‘object’ or rad[col].dtype.name == ‘category’: rad[col] = le.fit_transform(rad[col])

from sklearn.metrics import silhouette_samples, silhouette_score
import numpy as np

cluster_range = range( 2, 7 )

for n_clusters in cluster_range:
    # Create a subplot with 1 row and 2 columns
    fig, (ax1, ax2) = plt.subplots(1, 2)
    fig.set_size_inches(18, 7)

    # The 1st subplot is the silhouette plot
    # The silhouette coefficient can range from -1, 1 but in this example all
    # lie within [-0.1, 1]
    ax1.set_xlim([-0.1, 1])
    # The (n_clusters+1)*10 is for inserting blank space between silhouette
    # plots of individual clusters, to demarcate them clearly.
    ax1.set_ylim([0, len(rad.iloc[:,1:-4:]) + (n_clusters + 1) * 10])

    # Initialize the clusterer with n_clusters value and a random generator
    # seed of 10 for reproducibility.
    clusterer = KMeans(n_clusters=n_clusters, random_state=10)
    cluster_labels = clusterer.fit_predict( rad.iloc[:,1:-4:] )

    # The silhouette_score gives the average value for all the samples.
    # This gives a perspective into the density and separation of the formed
    # clusters
    silhouette_avg = silhouette_score(rad.iloc[:,1:-4:], cluster_labels)
    print("For n_clusters =", n_clusters,
        "The average silhouette_score is :", silhouette_avg)

    # Compute the silhouette scores for each sample
    sample_silhouette_values = silhouette_samples(rad.iloc[:,1:-4:], cluster_labels)

    y_lower = 10
    for i in range(n_clusters):
      # Aggregate the silhouette scores for samples belonging to
      # cluster i, and sort them
      ith_cluster_silhouette_values = \
          sample_silhouette_values[cluster_labels == i]

      ith_cluster_silhouette_values.sort()

      size_cluster_i = ith_cluster_silhouette_values.shape[0]
      y_upper = y_lower + size_cluster_i

      color = cm.spectral(float(i) / n_clusters)
      ax1.fill_betweenx(np.arange(y_lower, y_upper),
                        0, ith_cluster_silhouette_values,
                        facecolor=color, edgecolor=color, alpha=0.7)

      # Label the silhouette plots with their cluster numbers at the middle
      ax1.text(-0.05, y_lower + 0.5 * size_cluster_i, str(i))

      # Compute the new y_lower for next plot
      y_lower = y_upper + 10  # 10 for the 0 samples

    ax1.set_title("The silhouette plot for the various clusters.")
    ax1.set_xlabel("The silhouette coefficient values")
    ax1.set_ylabel("Cluster label")

    # The vertical line for average silhoutte score of all the values
    ax1.axvline(x=silhouette_avg, color="red", linestyle="--")

    ax1.set_yticks([])  # Clear the yaxis labels / ticks
    ax1.set_xticks([-0.1, 0, 0.2, 0.4, 0.6, 0.8, 1])

    # 2nd Plot showing the actual clusters formed
    colors = cm.spectral(cluster_labels.astype(float) / n_clusters)
    ax2.scatter(rad.iloc[:, -2], rad.iloc[:, -1], marker='.', s=30, lw=0, alpha=0.7,
              c=colors)

    # Labeling the clusters
    centers = clusterer.cluster_centers_
    # Draw white circles at cluster centers
    ax2.scatter(centers[:, 0], centers[:, 1],
              marker='o', c="white", alpha=1, s=200)

    for i, c in enumerate(centers):
      ax2.scatter(c[0], c[1], marker='$%d$' % i, alpha=1, s=50)

    ax2.set_title("The visualization of the clustered data.")
    ax2.set_xlabel("Feature space for the 1st feature")
    ax2.set_ylabel("Feature space for the 2nd feature")

    plt.suptitle(("Silhouette analysis for KMeans clustering on sample data "
                "with n_clusters = %d" % n_clusters),
               fontsize=14, fontweight='bold')

    plt.show()

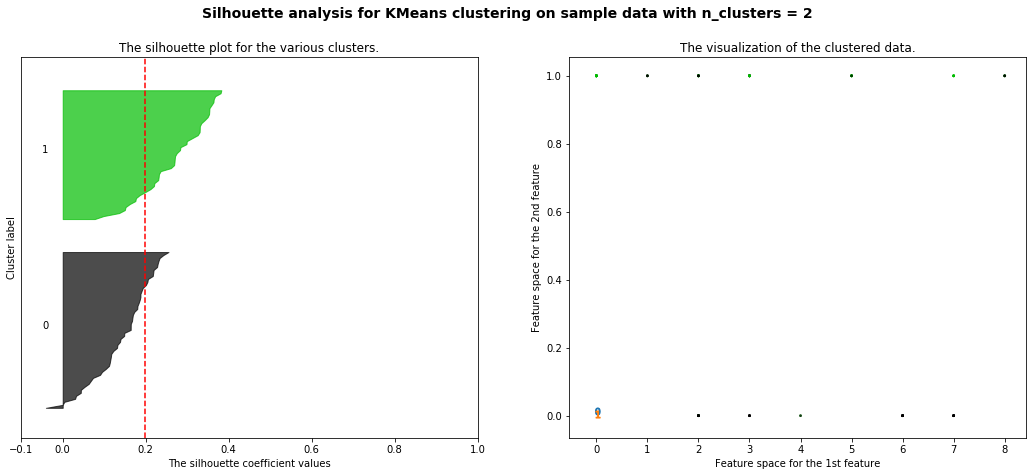

For n_clusters = 2 The average silhouette_score is : 0.19917062862266718

png

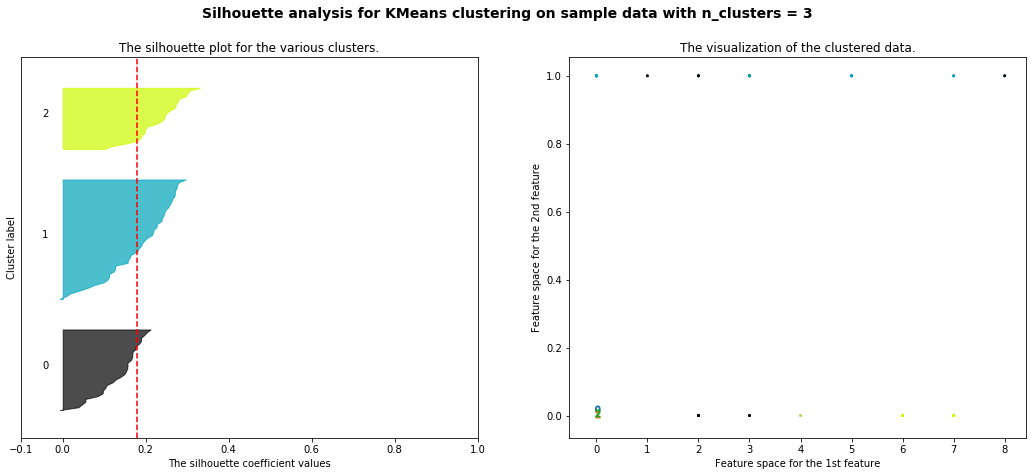

For n_clusters = 3 The average silhouette_score is : 0.17962478496274137

png

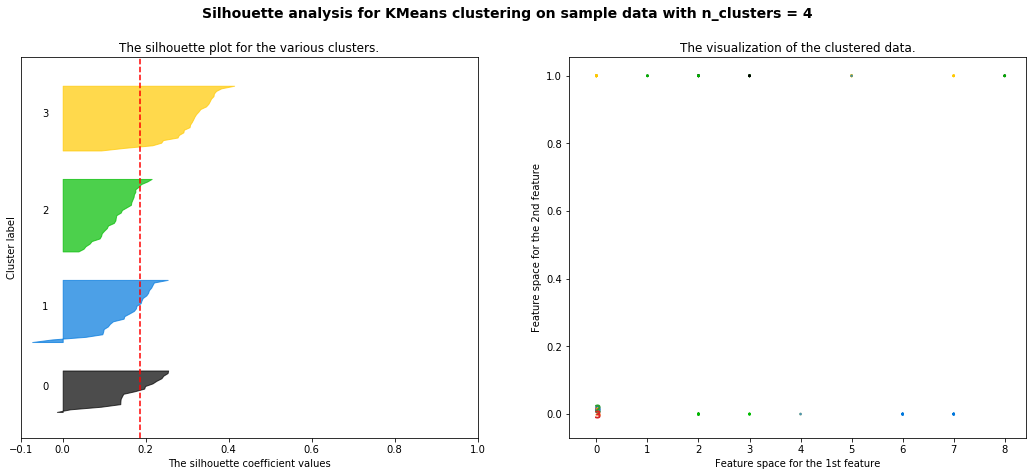

For n_clusters = 4 The average silhouette_score is : 0.18721328745339205

png

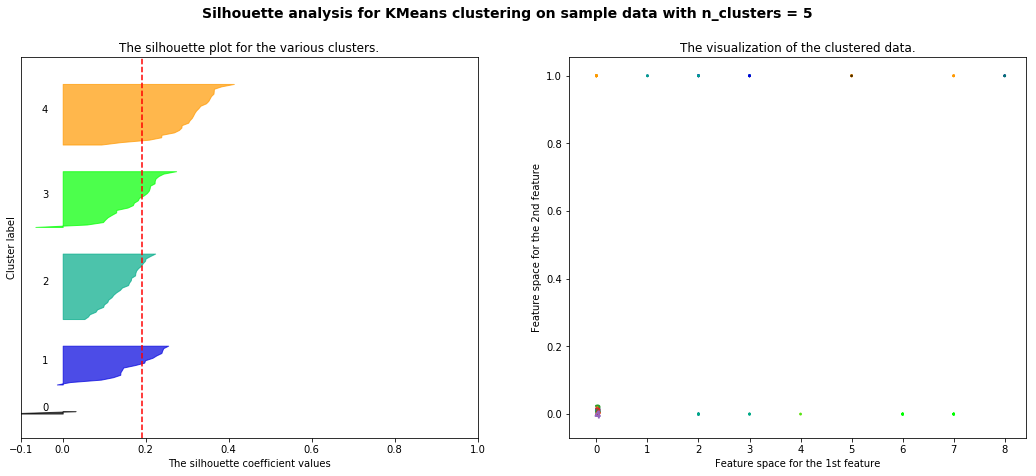

For n_clusters = 5 The average silhouette_score is : 0.19029963290478452

png

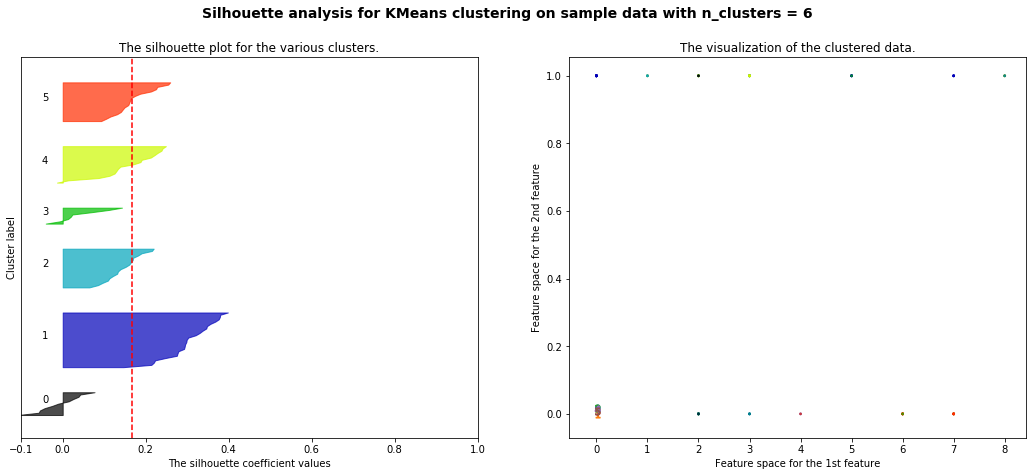

For n_clusters = 6 The average silhouette_score is : 0.1665540459580535

png

At 4 they are all about the same size, crossing the average line. At 4 number off clusters, the cluster sizes are fairly homogeneous. And only a few observations are assigned to wrong cluster and almost all clusters have observations that are more than the average Silhouette score.

## Start the clusters here.
clusters = KMeans(4)
clusters.fit(rad.iloc[:,1:-4:].T)
#cluster_errors.append( clusters.inertia_ )
centroids = clusters.cluster_centers_
clusters = KMeans(4)
clusters.fit(rad.iloc[:,1:-4:])
labels = clusters.predict(rad.iloc[:,1:-4:])
# Centroid values

labels
array([0, 0, 0, 0, 0, 2, 2, 1, 2, 1, 2, 2, 2, 2, 2, 2, 0, 0, 0, 0, 0, 0,
       0, 3, 3, 0, 3, 3, 3, 0, 0, 0, 0, 3, 3, 3, 3, 3, 3, 3, 3, 3, 0, 3,
       3, 3, 3, 3, 3, 3, 3, 3, 3, 2, 1, 1, 2, 2, 2, 1, 2, 2, 2, 1, 1, 1,
       1, 1, 1, 2, 2, 2, 2, 2, 2, 1, 1, 2, 2, 2, 2, 2, 2, 1, 1, 1, 1, 2,
       0, 0, 0, 0, 0, 3, 3, 3, 3], dtype=int32)
centroids.shape
(4, 97)
## IF I had to traspose, I could've sworns
rad.iloc[:,1:-4:].shape
(97, 30)
rad.head()
model Albuquerque Cycles Ann Arbor Speed Austin Cruisers Cincinnati Speed Columbus Race Equipment Dallas Cycles Denver Bike Shop Detroit Cycles Indianapolis Velocipedes ... Providence Bi-peds San Antonio Bike Shop San Francisco Cruisers Seattle Race Equipment Tampa 29ers Wichita Speed price category1 category2 frame
0 Bad Habit 1 0.017483 0.006645 0.008130 0.005115 0.010152 0.012821 0.011734 0.009921 0.006270 ... 0.009225 0.021505 0.002674 0.015625 0.019417 0.005917 (2700.0, 12790.0] Mountain Trail Aluminum
1 Bad Habit 2 0.006993 0.009967 0.004065 0.000000 0.000000 0.017094 0.013907 0.015873 0.003135 ... 0.023985 0.000000 0.002674 0.007812 0.000000 0.000000 (414.999, 2700.0] Mountain Trail Aluminum
2 Beast of the East 1 0.010490 0.014950 0.008130 0.000000 0.000000 0.004274 0.018253 0.011905 0.009404 ... 0.009225 0.005376 0.000000 0.015625 0.009709 0.000000 (2700.0, 12790.0] Mountain Trail Aluminum
3 Beast of the East 2 0.010490 0.009967 0.008130 0.000000 0.005076 0.004274 0.015211 0.005952 0.009404 ... 0.014760 0.010753 0.002674 0.023438 0.029126 0.001972 (414.999, 2700.0] Mountain Trail Aluminum
4 Beast of the East 3 0.003497 0.003322 0.000000 0.000000 0.002538 0.004274 0.016949 0.011905 0.000000 ... 0.007380 0.032258 0.000000 0.007812 0.009709 0.000000 (414.999, 2700.0] Mountain Trail Aluminum

5 rows × 35 columns

for i, c in enumerate(centroids):
    rad["Cluster "+str(i)] = list(c)
rad_final = rad.drop(list(rad.iloc[:,1:].iloc[:,:-8].columns),axis=1)
rad_final.sort_values("Cluster 0").head(10)
model price category1 category2 frame Cluster 0 Cluster 1 Cluster 2 Cluster 3
83 Synapse Hi-Mod Disc Black Inc. (2700.0, 12790.0] Road Endurance Road Carbon 0.003503 0.009168 0.019755 0.007196
63 Supersix Evo Black Inc. (2700.0, 12790.0] Road Elite Road Carbon 0.003620 0.008226 0.019639 0.015364
54 Slice Hi-Mod Black Inc. (2700.0, 12790.0] Road Triathalon Carbon 0.003827 0.016406 0.023494 0.013543
64 Supersix Evo Hi-Mod Dura Ace 1 (2700.0, 12790.0] Road Elite Road Carbon 0.003856 0.005667 0.023053 0.006798
86 Synapse Hi-Mod Dura Ace (2700.0, 12790.0] Road Endurance Road Carbon 0.004202 0.013474 0.021672 0.008991
76 Synapse Carbon Disc Ultegra D12 (2700.0, 12790.0] Road Endurance Road Carbon 0.004295 0.012610 0.019516 0.012696
40 Jekyll Carbon 3 (2700.0, 12790.0] Mountain Over Mountain Carbon 0.004389 0.013288 0.011734 0.000524
66 Supersix Evo Hi-Mod Team (2700.0, 12790.0] Road Elite Road Carbon 0.004652 0.008754 0.016159 0.013339
7 CAAD12 Black Inc (2700.0, 12790.0] Road Elite Road Aluminum 0.004709 0.004142 0.019471 0.011152
26 F-Si Hi-Mod 1 (2700.0, 12790.0] Mountain Cross Country Race Carbon 0.004748 0.013929 0.010030 0.000676
rad_final = rad_final.rename(columns={"Cluster 0":"Low End Road Bike Customer"})
rad_final.sort_values("Cluster 1").head(10)
model price category1 category2 frame Low End Road Bike Customer Cluster 1 Cluster 2 Cluster 3
56 Slice Ultegra (414.999, 2700.0] Road Triathalon Carbon 0.018821 0.000000 0.013370 0.022077
72 Syapse Carbon Tiagra (414.999, 2700.0] Road Endurance Road Carbon 0.010617 0.000000 0.010837 0.018366
53 Slice 105 (414.999, 2700.0] Road Triathalon Carbon 0.013984 0.000000 0.011002 0.017242
60 SuperX Rival CX1 (414.999, 2700.0] Road Cyclocross Carbon 0.014142 0.000000 0.010074 0.013548
78 Synapse Carbon Ultegra 4 (414.999, 2700.0] Road Endurance Road Carbon 0.013919 0.000000 0.011632 0.020372
58 SuperX 105 (414.999, 2700.0] Road Cyclocross Carbon 0.012159 0.000000 0.009596 0.014853
14 CAAD8 Sora (414.999, 2700.0] Road Elite Road Aluminum 0.015626 0.000000 0.013606 0.017489
69 Supersix Evo Tiagra (414.999, 2700.0] Road Elite Road Carbon 0.012011 0.000264 0.013232 0.018053
8 CAAD12 Disc 105 (414.999, 2700.0] Road Elite Road Aluminum 0.016751 0.000264 0.014013 0.015795
82 Synapse Disc Tiagra (414.999, 2700.0] Road Endurance Road Aluminum 0.013016 0.000264 0.008813 0.024608
rad_final = rad_final.rename(columns={"Cluster 1":"High End Road Bike Customer"})
rad_final.sort_values("Cluster 2").head(10)
model price category1 category2 frame Low End Road Bike Customer High End Road Bike Customer Cluster 2 Cluster 3
20 F-Si 1 (414.999, 2700.0] Mountain Cross Country Race Aluminum 0.012330 0.017409 -1.734723e-18 0.007079
30 Habit 4 (2700.0, 12790.0] Mountain Trail Aluminum 0.015225 0.011251 0.000000e+00 0.004316
29 Fat CAAD2 (414.999, 2700.0] Mountain Fat Bike Aluminum 0.012995 0.007621 1.734723e-18 0.006693
2 Beast of the East 1 (2700.0, 12790.0] Mountain Trail Aluminum 0.012339 0.012125 2.670940e-04 0.012970
18 Catalyst 3 (414.999, 2700.0] Mountain Sport Aluminum 0.018260 0.003200 2.670940e-04 0.007307
16 Catalyst 1 (414.999, 2700.0] Mountain Sport Aluminum 0.014337 0.006794 3.287311e-04 0.008686
32 Habit 6 (414.999, 2700.0] Mountain Trail Aluminum 0.014141 0.004235 4.230118e-04 0.010441
25 F-Si Carbon 4 (2700.0, 12790.0] Mountain Cross Country Race Carbon 0.018444 0.008732 4.230118e-04 0.010026
1 Bad Habit 2 (414.999, 2700.0] Mountain Trail Aluminum 0.012405 0.004576 4.456328e-04 0.008157
88 Trail 1 (414.999, 2700.0] Mountain Sport Aluminum 0.015381 0.005553 6.901059e-04 0.013061
rad_final = rad_final.rename(columns={"Cluster 2":"Aluminum Mountain Bike Customers"})
rad_final.sort_values("Cluster 3").head(10)
model price category1 category2 frame Low End Road Bike Customer High End Road Bike Customer Aluminum Mountain Bike Customers Cluster 3
37 Habit Hi-Mod Black Inc. (2700.0, 12790.0] Mountain Trail Carbon 0.007331 0.011520 0.008958 0.000316
38 Jekyll Carbon 1 (2700.0, 12790.0] Mountain Over Mountain Carbon 0.008027 0.018505 0.008085 0.000487
40 Jekyll Carbon 3 (2700.0, 12790.0] Mountain Over Mountain Carbon 0.004389 0.013288 0.011734 0.000524
34 Habit Carbon 2 (2700.0, 12790.0] Mountain Trail Carbon 0.005371 0.023375 0.007472 0.000528
52 Scalpel-Si Race (2700.0, 12790.0] Mountain Cross Country Race Carbon 0.011713 0.009638 0.012867 0.000569
26 F-Si Hi-Mod 1 (2700.0, 12790.0] Mountain Cross Country Race Carbon 0.004748 0.013929 0.010030 0.000676
39 Jekyll Carbon 2 (2700.0, 12790.0] Mountain Over Mountain Carbon 0.006515 0.021079 0.010311 0.000744
35 Habit Carbon 3 (2700.0, 12790.0] Mountain Trail Carbon 0.007421 0.008960 0.011745 0.000785
49 Scalpel-Si Carbon 3 (2700.0, 12790.0] Mountain Cross Country Race Carbon 0.005525 0.034269 0.012994 0.000800
51 Scalpel-Si Hi-Mod 1 (2700.0, 12790.0] Mountain Cross Country Race Carbon 0.006579 0.018085 0.013578 0.000862
rad_final = rad_final.rename(columns={"Cluster 3":"High End Carbon Mountain Bike Customers"})

If you review your results and some of the clusters happened to be similar, it might be necessary to drop a few clusters and rerun the algorithm. In our case tha is not necessary, as generally good separations have been done. It is good to remember that the customer segmentation process can be performed with various clustering algorithms. In this post, we focused on k-means clustering

PCA is nothing more than an algorithm that takes numeric data in x, y, z coordinates and changes the coordinates to x’, y’, and z’ that maximize the linear variance.

How does this help in customer segmentation / community detection? Unlike k-means, PCA is not a direct solution. What PCA helps with is visualizing the essence of a data set. Because PCA selects PC’s based on the maximum linear variance, we can use the first few PC’s to describe a vast majority of the data set without needing to compare and contrast every single feature. By using PC1 and PC2, we can then visualize in 2D and inspect for clusters. We can also combine the results with the k-means groups to see what k-means detected as compared to the clusters in the PCA visualization.

If you want to scale the data, a scaler function is fine, if you want to scale and center the data then standardisation is the best. In practice we often ignore the shape of the distribution and just transform the data to center it by removing the mean value of each feature, then scale it by dividing non-constant features by their standard deviation. This is called standardisation.

from sklearn.pipeline import make_pipeline

import seaborn as sns
from sklearn.decomposition import PCA
from sklearn.preprocessing import StandardScaler
#pca2 = PCA(n_components=2)

pca2_results = make_pipeline(StandardScaler(),PCA(n_components=2)).fit_transform(rad.iloc[:,1:-(4+len(centroids))])

for i in range(pca2_results.shape[1]):
    rad.iloc[:,1:-(4+len(centroids)):]["pca_"+str(i)] = pca2_results[:,i]

cmap = sns.cubehelix_palette(as_cmap=True)
f, ax = plt.subplots(figsize=(20,15))
points = ax.scatter(pca2_results[:,0], pca2_results[:,1],c=labels,  s=50, cmap=cmap)
#c=df_2.TARGET,
f.colorbar(points)
plt.show()

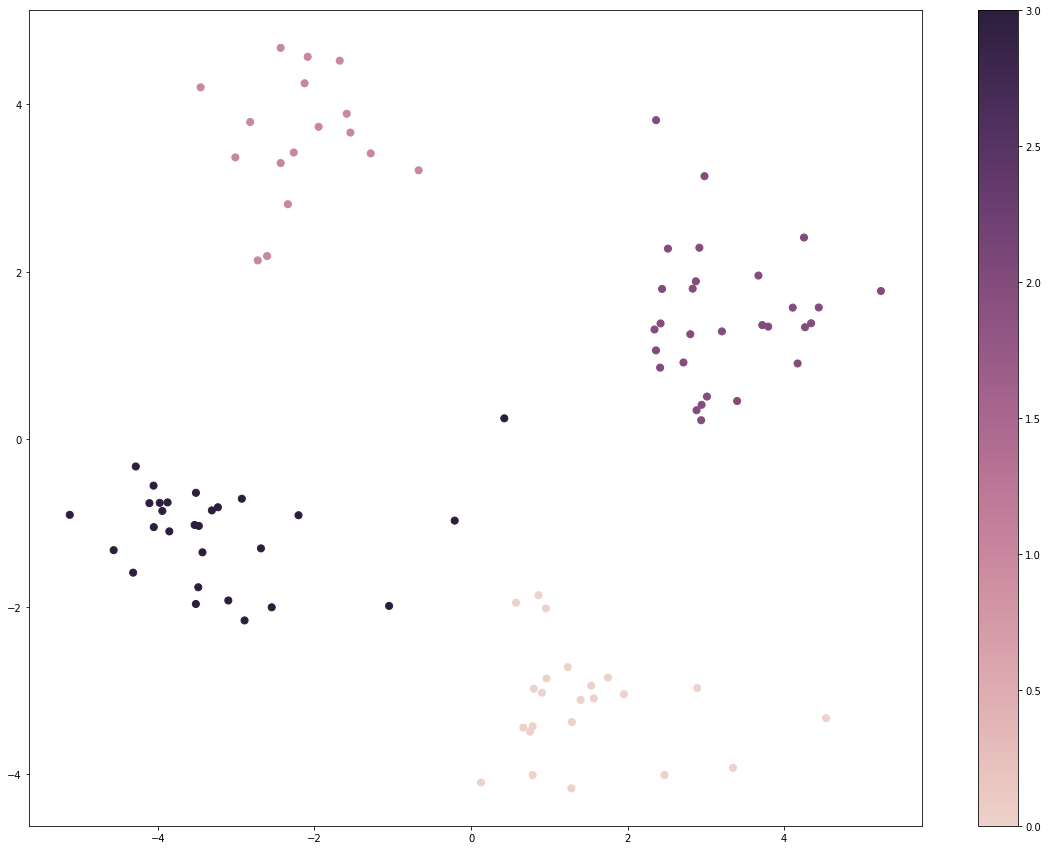

### Each dot is a cycle shop

png

PCA can be a valuable cross-check to k-means for customer segmentation. While k-means got us close to the true customer segments, visually evaluating the groups using PCA helped identify a different customer segment, one that the [Math Processing Error] k-means solution did not pick up.

For customer segmentation, we can utilize network visualization to understand both the network communities and the strength of the relationships. Before we jump into network visualization

The first step to network visualization is to get the data organized into a cosine similarity matrix. A similarity matrix is a way of numerically representing the similarity between multiple variables similar to a correlation matrix. We’ll use Cosine Similarity to measure the relationship, which measures how similar the direction of a vector is to another vector. If that seems complicated, just think of a customer cosine similarity as a number that reflects how closely the direction of buying habits are related. Numbers will range from zero to one with numbers closer to one indicating very similar buying habits and numbers closer to zero indicating dissimilar buying habits.

from sklearn.metrics.pairwise import cosine_similarity
import numpy as np
cosine_similarity(rad.iloc[:,1:-(4+len(centroids))].T).shape
(30, 30)
cos_mat = pd.DataFrame(cosine_similarity(rad.iloc[:,1:-(4+len(centroids))].T), index=list(rad.iloc[:,1:-(4+len(centroids))].columns), columns=list(rad.iloc[:,1:-(4+len(centroids))].columns))
## Make diagonal zero
cos_mat.values[[np.arange(len(cos_mat))]*2] = 0
def front(self, n):
    return self.iloc[:, :n]

pd.DataFrame.front = front
cos_mat.head(5).front(5)
Albuquerque Cycles Ann Arbor Speed Austin Cruisers Cincinnati Speed Columbus Race Equipment
Albuquerque Cycles 0.000000 0.619604 0.594977 0.544172 0.582015
Ann Arbor Speed 0.619604 0.000000 0.743195 0.719272 0.659216
Austin Cruisers 0.594977 0.743195 0.000000 0.594016 0.566944
Cincinnati Speed 0.544172 0.719272 0.594016 0.000000 0.795889
Columbus Race Equipment 0.582015 0.659216 0.566944 0.795889 0.000000

It’s a good idea to prune the tree before we move to graphing. The network graphs can become quite messy if we do not limit the number of edges. We do this by reviewing the cosine similarity matrix and selecting an edgeLimit, a number below which the cosine similarities will be replaced with zero. This keeps the highest ranking relationships while reducing the noise. We select 0.70 as the limit, but typically this is a trial and error process. If the limit is too high, the network graph will not show enough detail.

edgeLimit = 0.7
cos_mat = cos_mat.applymap(lambda x: 0 if x <edgeLimit else x)
cos_mat.head(5).front(5)
Albuquerque Cycles Ann Arbor Speed Austin Cruisers Cincinnati Speed Columbus Race Equipment
Albuquerque Cycles 0.0 0.000000 0.000000 0.000000 0.000000
Ann Arbor Speed 0.0 0.000000 0.743195 0.719272 0.000000
Austin Cruisers 0.0 0.743195 0.000000 0.000000 0.000000
Cincinnati Speed 0.0 0.719272 0.000000 0.000000 0.795889
Columbus Race Equipment 0.0 0.000000 0.000000 0.795889 0.000000
import igraph

from scipy.cluster.hierarchy import dendrogram, linkage
## I think the diagonal creates the one drpop
Z = linkage(cos_mat, 'ward')
/Users/dereksnow/anaconda/envs/py36/lib/python3.6/site-packages/ipykernel/__main__.py:2: ClusterWarning: scipy.cluster: The symmetric non-negative hollow observation matrix looks suspiciously like an uncondensed distance matrix
  from ipykernel import kernelapp as app
cos_mat.drop_duplicates().shape
(30, 30)
from scipy.cluster.hierarchy import cophenet
from scipy.spatial.distance import pdist

c, coph_dists = cophenet(Z, pdist(cos_mat))
#list(cos_mat.as_matrix())
cos_mat
Albuquerque Cycles Ann Arbor Speed Austin Cruisers Cincinnati Speed Columbus Race Equipment Dallas Cycles Denver Bike Shop Detroit Cycles Indianapolis Velocipedes Ithaca Mountain Climbers ... Philadelphia Bike Shop Phoenix Bi-peds Pittsburgh Mountain Machines Portland Bi-peds Providence Bi-peds San Antonio Bike Shop San Francisco Cruisers Seattle Race Equipment Tampa 29ers Wichita Speed
Albuquerque Cycles 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.700233 0.000000 0.000000 ... 0.000000 0.730533 0.000000 0.707184 0.721538 0.000000 0.000000 0.000000 0.000000 0.000000
Ann Arbor Speed 0.000000 0.000000 0.743195 0.719272 0.000000 0.000000 0.000000 0.738650 0.756429 0.000000 ... 0.000000 0.773410 0.000000 0.721959 0.782233 0.000000 0.000000 0.704031 0.000000 0.000000
Austin Cruisers 0.000000 0.743195 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.752929 0.000000 ... 0.717374 0.771772 0.000000 0.746299 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000
Cincinnati Speed 0.000000 0.719272 0.000000 0.000000 0.795889 0.000000 0.000000 0.000000 0.000000 0.000000 ... 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.829649 0.000000 0.000000 0.807522
Columbus Race Equipment 0.000000 0.000000 0.000000 0.795889 0.000000 0.000000 0.000000 0.704296 0.000000 0.000000 ... 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.778459 0.000000 0.000000 0.748018
Dallas Cycles 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.743126 0.749603 0.000000 0.000000 ... 0.000000 0.768081 0.000000 0.754692 0.756797 0.000000 0.000000 0.000000 0.000000 0.000000
Denver Bike Shop 0.000000 0.000000 0.000000 0.000000 0.000000 0.743126 0.000000 0.784315 0.000000 0.739835 ... 0.000000 0.873259 0.000000 0.855332 0.795989 0.728577 0.000000 0.000000 0.000000 0.000000
Detroit Cycles 0.700233 0.738650 0.000000 0.000000 0.704296 0.749603 0.784315 0.000000 0.000000 0.000000 ... 0.702683 0.833591 0.000000 0.836725 0.793167 0.000000 0.000000 0.000000 0.000000 0.000000
Indianapolis Velocipedes 0.000000 0.756429 0.752929 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 ... 0.000000 0.714849 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000
Ithaca Mountain Climbers 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.739835 0.000000 0.000000 0.000000 ... 0.000000 0.000000 0.814699 0.000000 0.000000 0.000000 0.000000 0.000000 0.766426 0.000000
Kansas City 29ers 0.709368 0.000000 0.000000 0.000000 0.000000 0.746897 0.957257 0.788795 0.000000 0.738281 ... 0.704455 0.885133 0.000000 0.863437 0.826441 0.000000 0.000000 0.000000 0.000000 0.000000
Las Vegas Cycles 0.000000 0.000000 0.000000 0.819100 0.793809 0.000000 0.000000 0.000000 0.000000 0.000000 ... 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.798941 0.000000 0.000000 0.857356
Los Angeles Cycles 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.765069 0.701997 0.000000 0.000000 ... 0.000000 0.813920 0.000000 0.803344 0.729771 0.000000 0.000000 0.000000 0.000000 0.000000
Louisville Race Equipment 0.000000 0.000000 0.000000 0.858299 0.780713 0.000000 0.000000 0.000000 0.000000 0.000000 ... 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.753219 0.000000 0.000000 0.819657
Miami Race Equipment 0.000000 0.887012 0.777433 0.000000 0.000000 0.000000 0.000000 0.766868 0.746176 0.000000 ... 0.715803 0.843452 0.000000 0.793937 0.788819 0.000000 0.000000 0.747068 0.000000 0.000000
Minneapolis Bike Shop 0.700426 0.744016 0.736987 0.000000 0.000000 0.780322 0.802102 0.780967 0.000000 0.000000 ... 0.708330 0.895092 0.000000 0.852946 0.833356 0.000000 0.000000 0.000000 0.000000 0.000000
Nashville Cruisers 0.000000 0.812436 0.753784 0.000000 0.000000 0.000000 0.000000 0.737619 0.700912 0.000000 ... 0.000000 0.798585 0.000000 0.773644 0.733613 0.000000 0.000000 0.726407 0.000000 0.000000
New Orleans Velocipedes 0.000000 0.850807 0.809239 0.721739 0.000000 0.705624 0.000000 0.783405 0.780344 0.000000 ... 0.000000 0.836748 0.000000 0.808124 0.773396 0.000000 0.703193 0.811988 0.000000 0.000000
New York Cycles 0.000000 0.731991 0.708396 0.000000 0.000000 0.000000 0.787456 0.753576 0.000000 0.000000 ... 0.701388 0.849327 0.000000 0.816018 0.771974 0.000000 0.000000 0.722622 0.000000 0.000000
Oklahoma City Race Equipment 0.000000 0.875217 0.823806 0.714466 0.000000 0.000000 0.000000 0.782434 0.771407 0.000000 ... 0.705122 0.857586 0.000000 0.828342 0.798605 0.715004 0.000000 0.805118 0.000000 0.000000
Philadelphia Bike Shop 0.000000 0.000000 0.717374 0.000000 0.000000 0.000000 0.000000 0.702683 0.000000 0.000000 ... 0.000000 0.734866 0.000000 0.764986 0.000000 0.720375 0.000000 0.000000 0.000000 0.000000
Phoenix Bi-peds 0.730533 0.773410 0.771772 0.000000 0.000000 0.768081 0.873259 0.833591 0.714849 0.000000 ... 0.734866 0.000000 0.000000 0.913740 0.879047 0.740801 0.000000 0.722206 0.000000 0.000000
Pittsburgh Mountain Machines 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.814699 ... 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.716919 0.000000
Portland Bi-peds 0.707184 0.721959 0.746299 0.000000 0.000000 0.754692 0.855332 0.836725 0.000000 0.000000 ... 0.764986 0.913740 0.000000 0.000000 0.815651 0.760300 0.000000 0.000000 0.000000 0.000000
Providence Bi-peds 0.721538 0.782233 0.000000 0.000000 0.000000 0.756797 0.795989 0.793167 0.000000 0.000000 ... 0.000000 0.879047 0.000000 0.815651 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000
San Antonio Bike Shop 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.728577 0.000000 0.000000 0.000000 ... 0.720375 0.740801 0.000000 0.760300 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000
San Francisco Cruisers 0.000000 0.000000 0.000000 0.829649 0.778459 0.000000 0.000000 0.000000 0.000000 0.000000 ... 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.779465
Seattle Race Equipment 0.000000 0.704031 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 ... 0.000000 0.722206 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000
Tampa 29ers 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.766426 ... 0.000000 0.000000 0.716919 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000
Wichita Speed 0.000000 0.000000 0.000000 0.807522 0.748018 0.000000 0.000000 0.000000 0.000000 0.000000 ... 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.779465 0.000000 0.000000 0.000000

30 rows × 30 columns

Z.shape
(29, 4)

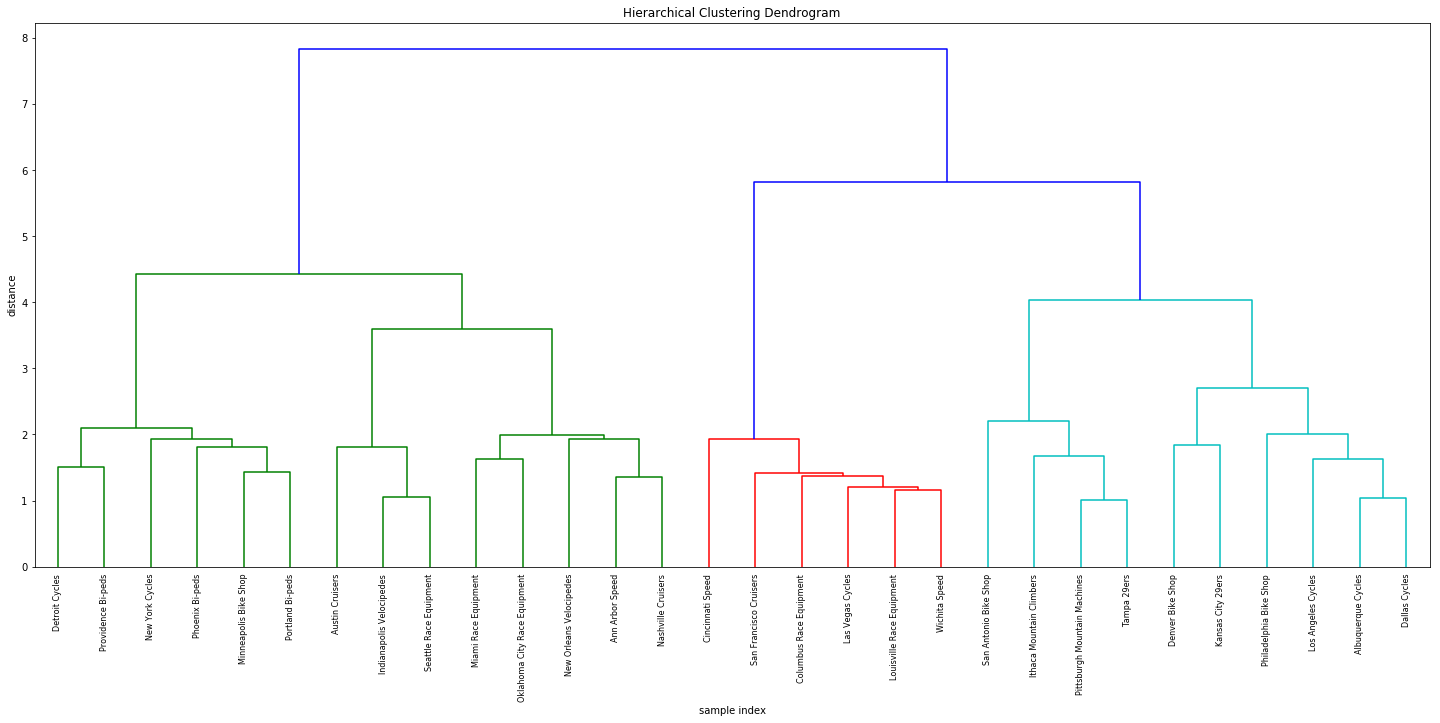

plt.figure(figsize=(25, 10))
plt.title('Hierarchical Clustering Dendrogram')
plt.xlabel('sample index')
plt.ylabel('distance')
dendrogram(
    Z,
    leaf_rotation=90.,  # rotates the x axis labels
    leaf_font_size=8.,  # font size for the x axis labels
    labels = list(cos_mat.columns),
)
plt.show()

## You can create a reasonable argument for 4 - 6 clusters.

png

cos_mat["Detroit Cycles"].sort_values(ascending=False)
Portland Bi-peds                0.836725
Phoenix Bi-peds                 0.833591
Providence Bi-peds              0.793167
Kansas City 29ers               0.788795
Denver Bike Shop                0.784315
New Orleans Velocipedes         0.783405
Oklahoma City Race Equipment    0.782434
Minneapolis Bike Shop           0.780967
Miami Race Equipment            0.766868
New York Cycles                 0.753576
Dallas Cycles                   0.749603
Ann Arbor Speed                 0.738650
Nashville Cruisers              0.737619
Columbus Race Equipment         0.704296
Philadelphia Bike Shop          0.702683
Los Angeles Cycles              0.701997
Albuquerque Cycles              0.700233
Louisville Race Equipment       0.000000
Las Vegas Cycles                0.000000
Tampa 29ers                     0.000000
Ithaca Mountain Climbers        0.000000
Indianapolis Velocipedes        0.000000
Detroit Cycles                  0.000000
Pittsburgh Mountain Machines    0.000000
San Antonio Bike Shop           0.000000
San Francisco Cruisers          0.000000
Cincinnati Speed                0.000000
Austin Cruisers                 0.000000
Seattle Race Equipment          0.000000
Wichita Speed                   0.000000
Name: Detroit Cycles, dtype: float64
  1. horizontal lines are cluster merges
  2. vertical lines tell you which clusters/labels were part of merge forming that new cluster
  3. heights of the horizontal lines tell you about the distance that needed to be “bridged” to form the new cluster

In case you’re wondering about where the colors come from, you might want to have a look at the color_threshold argument of dendrogram(), which as not specified automagically picked a distance cut-off value of 70 % of the final merge and then colored the first clusters below that in individual colors.

#### Supposedly, you can do some network analysis here.  Of course, you are not sure how.

cos_igraph = igraph.Graph.Adjacency(list(cos_mat.as_matrix()),mode = 'undirected')

cos_bet = igraph.Graph.edge_betweenness(cos_igraph)

cos_bet

plt.title('Hierarchical Clustering Dendrogram')
plot_dendrogram(cos_igraph)
plt.show()
## Possibly use this for future network:
https://python-graph-gallery.com/327-network-from-correlation-matrix/
